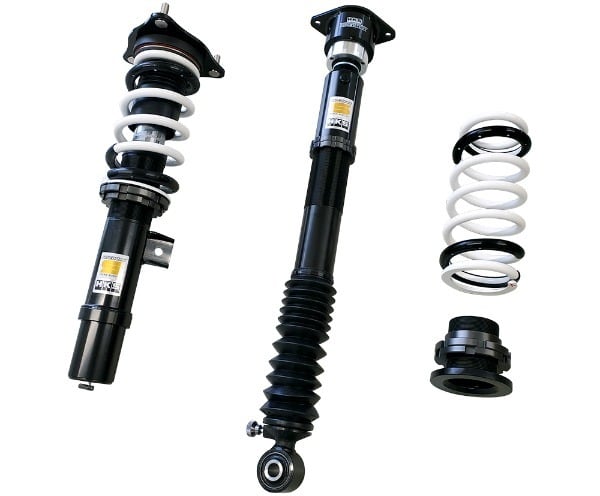

HKS 80300-AH009 Suspension Full Kit Hipermax S FC1 FK7

International shipping available

We do not have any stock. We will arrange this after receiving your order. It may take about one month for delivery. Thank you for your understanding.

Brand: HKS
Product: Coilover Suspension Full Kit Hipermax S - FK7 FC1
Part Num: 80300-AH009

SPECIFICATIONS:
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 49(5)
- Rear: 39(4)
Free Height (mm):
- Front: 220(Barrel)
- Rear: 220(Barrel)
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: N/A
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 333 / 299
- Rear: 167 / 137
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: No
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: Yes
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: -25 ~ -48
-- Rear: -3 ~ -68
-Drivable Range High - Low (mm):
-- Front: -25 ~ -48
-- Rear: -3 ~ -37
