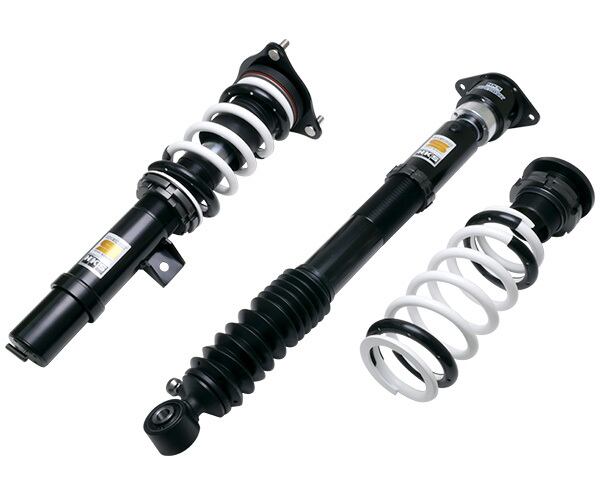

HKS 80300-AH011 Suspension Full Kit Hipermax S FL1

We do not have any stock. We will arrange this after receiving your order. It may take about one month for delivery. Thank you for your understanding.

Brand: HKS
Product: Coilover Suspension Full Kit Hipermax S - Civic FL1
Part Num: 80300-AH011

SPECIFICATIONS:
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 7495)
- Rear: 39(4)
Free Height (mm):
- Front: 200
- Rear: 220
Damper Force (Rebound/Damping):
- Front: 284 / 270
- Rear: 299 / 216
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Ride Height Specification:
-Default Ride Height Settings (mm):
-- Front: -30
-- Rear: -30
-Maximum Adjustable Range High - Low (mm):
-- Front: -18 ~ -61
-- Rear: -1 ~ -109
-Drivable Range High - Low (mm):
-- Front: -18 ~ -43
-- Rear: -1 ~ -47
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Upright
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A

PRODUCT NOTES:
Installation Manual PDF: https://www.hks-power.co.jp/product_search/product/download/5123/ja_en/80300-AH011.pdf
Front Knuckle Hub must be removed for installation

COMPATIBILITY NOTES:
Vehicles equipped with Front Knuckle Hub 50.6mm
